For use with unarmoured and rubber sheathed cables
Metric, PG, or NPT
CE Certified
BS 6121
Product Description

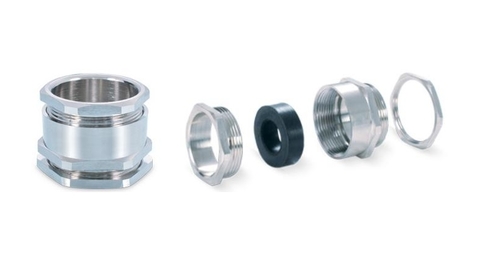

A2/a2 Cable Glands Details :
Size
20 mm to 90 mm
Standard
EN 50262 : 1999
Application
Outdoor or Indoor for use with all types of Unarmoured Cable
Function
Provide Seal on Outer Sheath of the Unarmoured Cable
Material
Brass BS 2874 CZ121 Pb3
Optional Threads
METRIC, NPT, BSP, PG or as specified
Finish
Brass Finish, Nickel Finish, Chrome Finish or as specified
Operating Temp.
Standard seals -200 C to +800 C
Accessories
Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tags, Reducers, Adaptors, etc. as per the requirement
Technical Data :
Size
Thread Size 'C'
Minimum Length of Thread 'D'
Cable Range
MM
INCH
MAX 'A'
MAX 'B'
A2 20S
20
3/4
15
10.80
8.80
A2 20L
20
3/4
15
14.70
11.40
A2 25S
25
1
15
16.00
13.00
A2 25L
25
1
15
20.30
17.30
A2 32S
32
1.1/4
15
23.00
20.00
A2 32L
32
1.1/4
15
26.20
24.20
A2 40S
40
1.1/2
20
29.00
26.00
A2 40L
40
1.1/2
20
34.00
29.50
A2 50S
50
2
20
41.00
33.00
A2 50L
50
2
20
45.00
38.00
A2 63S
63
2.1/2
20
51.50
44.00
A2 63L
63
2.1/2
20
56.50
50.00
A2 75S
75
3
20
63.20
56.00
A2 75L
75
3
20
68.50
62.00
Any kind of a1/a2 industrial cable glands, brass cable glands can be developed and supplied exactly as per Customer Specifications & Requirement.
Uncompromised Protection and Durability
Designed for rugged environments, A1 / A2 Cable Glands provide top-tier ingress protection (IP66/IP68), making them both weatherproof and flameproof. The nickel-plated brass body and EPDM rubber seal ensure longevity and resilience against corrosion, moisture, and temperature extremes. This, combined with precision CNC machining, speaks to unmatched craftsmanship and reliability for demanding electrical installations.
Versatile Compatibility and Simple Installation
With flexible sizing in metric and PG options, as well as accommodating single compression cable entry, this cable gland is adaptable to various cable types and project needs. Panel mounting is straightforward thanks to a robust brass (nickel-plated) locknut, and multiple thread types (Metric, PG, NPT) allow for integration into any designated panel or device. Its versatility spans across distributors, exporters, manufacturers, and service providers.
FAQs of A1 / A2 Cable Gland:
Q: How do you install the A1 / A2 Cable Gland for unarmoured cables?
A: Installation involves fitting the gland into a pre-drilled panel hole using the threaded entry (Metric, PG, or NPT) and securing with the provided nickel-plated brass locknut. Next, insert the cable through the gland, ensuring the EPDM rubber seal sits snugly around the insulation. Tighten the compression nut for a secure, weatherproof seal suitable for electrical or instrumentation applications.
Q: What types of cables are compatible with the A1 / A2 Cable Gland?
A: This gland is specifically designed for use with unarmoured and rubber sheathed cables, making it suitable for a variety of electrical and instrumentation applications where single compression entry is required.
Q: When should I select an A1 / A2 Cable Gland with IP66/IP68 protection?
A: Choose this gland when your application demands a high degree of environmental protectionfor example, in locations with exposure to water, dust, or harsh weather. The IP66/IP68 rating ensures tight sealing against both solid particles and water ingress, safeguarding cable terminations.
Q: Where are these cable glands most commonly used?
A: A1 / A2 Cable Glands are widely applied in industrial, commercial, and instrumentation sectors, particularly where secure cable termination is essential. Their design is ideal for electrical panels, distribution boxes, and other installations requiring flameproof, waterproof, or weather-resistant fittings.
Q: What is the benefit of using nickel-plated brass and EPDM rubber in these glands?
A: Nickel-plated brass provides superior resistance to corrosion and wear, while the EPDM rubber seal ensures durable, flexible, and leak-proof performance across a broad temperature range. Together, they extend the glands lifespan and reliability in demanding environments.
Q: How do I select the right size and thread type for my cable gland?
A: Refer to the product datasheet for guidance on available sizes in metric and PG standards. Match the gland size to your cables diameter and choose the appropriate thread (Metric, PG, or NPT) for your panel or enclosure to ensure optimal fit and sealing.
